WAL Series , Wall-Mount Rack 19" Model

Categories  > Wall-Mount Rack >WAL Series , Wall-Mount Rack 19" Model



Product Name:

Wall-Mount Rack 19" Model


Description:

Mat. : Aluminum


Features:

Key Specifications/Special Features:

  • Specifications:

    • Standard 19-inch wall-mount rack

    • Compatible with ANSI/EIA RS-310-C, D, E, F regulations

    • Extruded aluminum: AL6063T5

    • Compatible with UL and CE standards

  • Features:

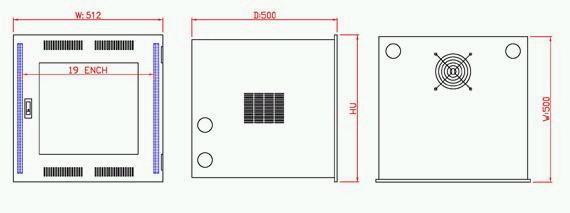

    • Wall-mount type:

      • Width (external): 514mm

      • Height : 6~15U

      • Depth (external): 500mm

      • 1U = 44.45mm

    • Structure:

      • Acrylic front door with lock, ventilation hole designed on the top and bottom of rack to

      • ensure effective cooling and security

      • 6-way socket strip and 30 sets of panel screws for the standard outfit

      • Power coated to protect against rust, oxidization, scratches, lacquer peeling, strong acid and alkali erosion


Specification:

Order Code

Capacity

Width

Depth

WAL1550

15U

517

500

WAL1250

12U

517

500

WAL1050

10U

517

500

WAL0850

8U

517

500

WAL0650

6U

517

500


Safety Approval:


Other Description:





This is the detailed information for Wall-Mount Rack 19" Model, WAL Series. The information includes model, name, description and specification for Wall-Mount Rack 19" Model, WAL Series. Related Keywords : Wall Mount Rack,Wall Mount,Rack

Please send your Inquiries for Wall-Mount Rack 19" Model, WAL Series to us. We will contact you soon. Please also check out the related product categories below.
