Eric Series , 19" Cabinet Rack(Server Rack)

19" Cabinet Rack(Server Rack)

ERIC Series Server Rack Cabinet, constructed of heavy duty steel for the ultimate server rack strength and stability. Our parts are machine finished and powder coated for extended use and wear. Vertical Mounting Rails offer a square hole universal mount (EIA-310) for any brand server. Front to Rear Airflow is achieved with our unique Glass/Perforated Front Door, and Fully Perforated Rear Door with additional venting on Top. Our Server Rack Cabinets are value packed with 6 Mounting Rails, Locked Doors & Sides, Heavy Duty Casters, Cage Nut Hardware, Cable Management and are Shipped Fully Assembled

Mat. : Aluminum
Cabinet Rack series:19" Cabinet Rack, Server Rack, Rack Cabinets, Rack Mount Instrument, Server Racks, K/D Server Rack more.....

Key Specifications/Special Features:

• Specifications:

  • Standard 19-inch rack

  • Must follow ANSI/EIA RS-310-C, D, E, F criterions for manufacture

  • UL and CE-approved, and MIL-STD-167 testes

• Surface and structure:

  • Surface:

    • External width: 630mm

    • Height : 37 / 41U

    • Depth: 900mm

    • 1U: 44.45mm

  • Structure:

    • Must follow ANSI/ EIARS-310-C, D, E, F criterions

    • UL and CE-approved,

    • and MIL-STD-167 tested

    • Main aluminum vertical rails use squeeze aluminum pillars; in an arc type appearance; material: AL6063T5

    • Flexible aluminum vertical rails can be set at the rack's front and back to meet the actual terminal wire needs (with at least

    • three grooves)

    • User can fixture structure accordingly

    • Rack's external depth is 900mm, and it's

    • internal depth must reach 750mm

    • We have honeycomb or tempered glass door for you to choose from (hidden lock or code

    • optional)

    • 6-way universal socket strips (1 set) with switch

    • 50 sets of catch nut and panel screw for standard outfit (you may add the

    • earthling copper rails for your rack)

    • Flexible aluminum vertical rail's apertures must

    • be able to install M5 or M6 catch nuts, and aperture to aperture's distance must follow

    • the EIA-Rs-310C' criterions (every aperture's size cannot be smaller than 9.2 x 9.2mm)

    • Flexible aluminum vertical rail's

    • thickness must higher than 2mm

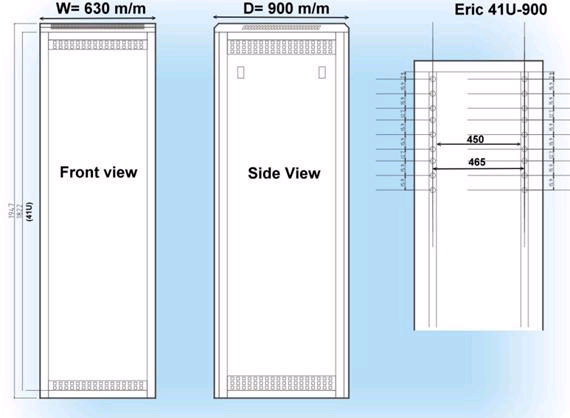

Order Code	Capacity	Width	Depth
Eric-41-90	41U	630	900

H 1 W/O Caster High ( 85mm) , 1U= 1.75 Inch= 44.45mm
