JF Series , 19" Cabinet Rack(Server Rack)

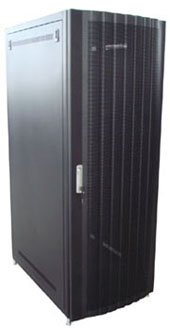

19" Cabinet Rack(Server Rack)

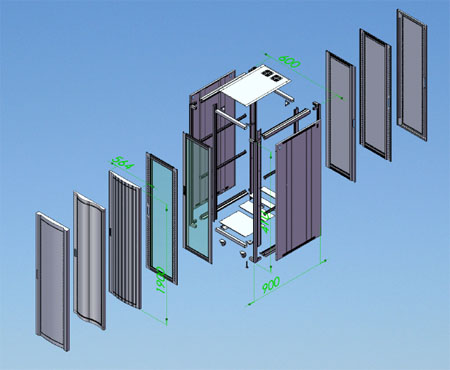

K/D Server Rack
Mat. : Aluminum
Cabinet Rack series:19" Cabinet Rack, Server Rack, Rack Cabinets, Rack Mount Instrument. more.....

Key Specifications/Special Features:

• Specifications:

  • Standard 19-inch Cabinet rack

  • Must follow ANSI/EIA RS-310-C, D, E, F criterions to manufacture

  • UL and CE-approved, and MIL-STD-167 tested

• Surface and structure:

  • Surface:

    • External width: 600mm

    • Height : 15~42U

    • Depth: 900mm

    • 1U for 44.45mm

  • Structure:

    • Must follow ANSI/EIARS-310-C, D, E, F criterions to manufacture

    • UL and CE-approved,

    • and MIL-STD-167 tested

    • Main aluminum vertical rails uses squeeze aluminum pillars; an arc type appearance; material: AL6063T5

    • Flexible aluminum vertical rails can be set at the Cabinet rack's front and back to meet the terminal wire's needs (it should have at least

    • three grooves)

    • User can add the cable fixtures accordingly

    • Cabinet Rack's external depth is 900mm, and its internal

    • depth must reach 750mm

    • 6-way universal socket strips (1 set) with switch

    • 50 sets of catch nuts and panel screws are the standard outfit (you may add copper rails for your rack)

    • Flexible aluminum vertical rail's apertures must be able to install the M5 or M6

    • catch nuts, and aperture-to-aperture's distance must follow

    • EIA-Rs-310C criterions (size cannot be smaller than 9.2 x 9.2mm)

    • Flexible aluminum vertical rail's

    • thickness must higher than 2mm

    • Removable aluminum vertical rails can be adjusted forwards or backwards

    • Powder coated to protect against rust, oxidization, scratches, lacquer peeling, strong acid and alkali erosion

    • Cabinet Rack's side panel can be easily assembled and disassembled from the outside without using any tools

    • 2 sets of UL and CE-approved cooling fans as standard outfit

    • Fan size: 120 x 25mm (increasing the number of fans is optional)

    • Screw-less appearance for a smooth and clean look

型號	標準尺寸(U)	外寬(mm)Width	外深(mm)
JF-42-900	42U	600	900
JF-42-1000		600	1000
JF-42-1100		600	1100
JF-41-615	41U	600	615
JF-41-900		600	900
JF-41-1000		600	1000
JF-41-1100		600	1100
JF-35-615	35U	600	615
JF-35-750		600	750
JF-35-900		600	900
JF-30-615	30U	600	615
JF-30-750		600	750
JF-30-900		600	900
JF-25-615	25U	600	615
JF-25-750		600	750
JF-25-900		600	900
JF-20-615	20U	600	615
JF-20-750		600	750
JF-20-900		600	900
JF-15-615	15U	600	615
JF-15-750		600	750
JF-15-900		600	900
