SJF Series , 19" Cabinet Rack(Server Rack)

19" Cabinet Rack(Server Rack)

K/D Server Rack /SJF Series Server Rack Size/Capacity- is one of the most important considerations, not only to make sure that the server rack has the right dimensions (height, width and depth), but also how the server racks will fit into the operating environment. This means checking the usable (inside) dimensions and the overall (outside) dimensions. You'll want to determine if freestanding, desktop or wall-mounted server racks will work best for your equipment and environment, although most server racks that house more than one server are generally freestanding. Check the weight capacity of the server rack to make sure it will work for your anticipated network equipment load.

Server racks are designed and built to hold computers, servers, monitors, kvm switches, patch panels, network equipment, production bench test equipment and other electronic equipment. Server racks are used in a variety of industries such as computers/technology, finance/banking, manufacturing, medical and almost any corporate setting that could benefit from vertical storage of equipment. Server racks are an extremely important component of any network. Quite often server racks are overlooked as just 'another piece of hardware' or categorized under office furniture or shelving. Finding the right server racks can increase the protection, security and ease of management of any network. Server Racks also save valuable floor space and add a professional appearance to your facility.

Server racks come in a wide variety of preconfigured sizes, shapes and designs. Some options might include features such as power / surge strips, fans, casters and glass doors. Server racks can typically be adapted with adjustable shelves and other components to hold and protect your specific equipment. Server racks can also be custom ordered and built to your exact specifications. Server racks generally appear pretty similar and have a fairly narrow range of features and functions, but there are some important differences among server racks that you should consider when making a purchase decision.

Mat. : Aluminum
Cabinet Rack series:19" Cabinet Rack, Server Rack, Rack Cabinets, Rack Mount Instrument, Server Racks, K/D Server Rack more.....

Key Specifications/Special Features:

• Specifications:

  • Standard 19-inch rack

  • Must follow ANSI/EIA RS-310-C, D, E, F criterions to manufacture

  • UL and CE-approved, and MIL-STD-167 tested

• Surface and structure:

  • Surface:

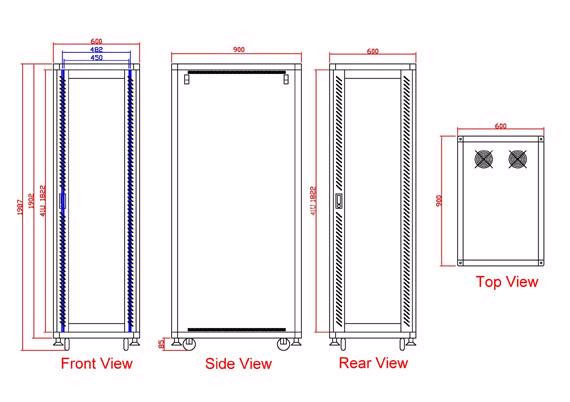

    • External width: 600mm

    • Height : 15~42U

    • Depth: 900mm

    • 1U for 44.45mm

  • Structure:

    • Must follow ANSI/EIARS-310-C, D, E, F criterions to manufacture

    • UL and CE-approved,

    • and MIL-STD-167 tested

    • Main aluminum vertical rails uses squeeze aluminum pillars; an arc type appearance; material: AL6063T5

    • Flexible aluminum vertical rails can be set at the rack's front and back to meet the terminal wire's needs (it should have at least

    • three grooves)

    • User can add the cable fixtures accordingly

    • Rack's external depth is 900mm, and its internal

    • depth must reach 750mm

    • 6-way universal socket strips (1 set) with switch

    • 50 sets of catch nuts and panel screws are the standard outfit (you may add copper rails for your rack)

    • Flexible aluminum vertical rail's apertures must be able to install the M5 or M6

    • catch nuts, and aperture-to-aperture's distance must follow

    • EIA-Rs-310C criterions (size cannot be smaller than 9.2 x 9.2mm)

    • Flexible aluminum vertical rail's

    • thickness must higher than 2mm

    • Removable aluminum vertical rails can be adjusted forwards or backwards

    • Powder coated to protect against rust, oxidization, scratches, lacquer peeling, strong acid and alkali erosion

    • Rack's side panel can be easily assembled and disassembled from the outside without using any tools

    • 2 sets of UL and CE-approved cooling fans as standard outfit

    • Fan size: 120 x 25mm (increasing the number of fans is optional)

    • Screw-less appearance for a smooth and clean look

Order Code	Capacity	Width	Depth
SJF-42-900	42U	600	900
SJF-41-615	41U	600	615
SJF-41-750		600	750
SJF-41-900		600	900
SJF-41-1000		600	1000
SJF-41-1100		600	1100
SJF-35-615	35U	600	615
SJF-35-750		600	750
SJF-35-900		600	900
SJF-30-615	30U	600	615
SJF-30-750		600	750
SJF-30-900		600	900
SJF-25-615	25U	600	615
SJF-25-750		600	750
SJF-25-900		600	900
SJF-20-615	20U	600	615
SJF-20-750		600	750
SJF-20-900		600	900
SJF-15-615	15U	600	615
SJF-15-750		600	750
SJF-15-900		600	900

H 1 W/O Caster High ( 85mm) , 1U= 1.75 Inch= 44.45mm
